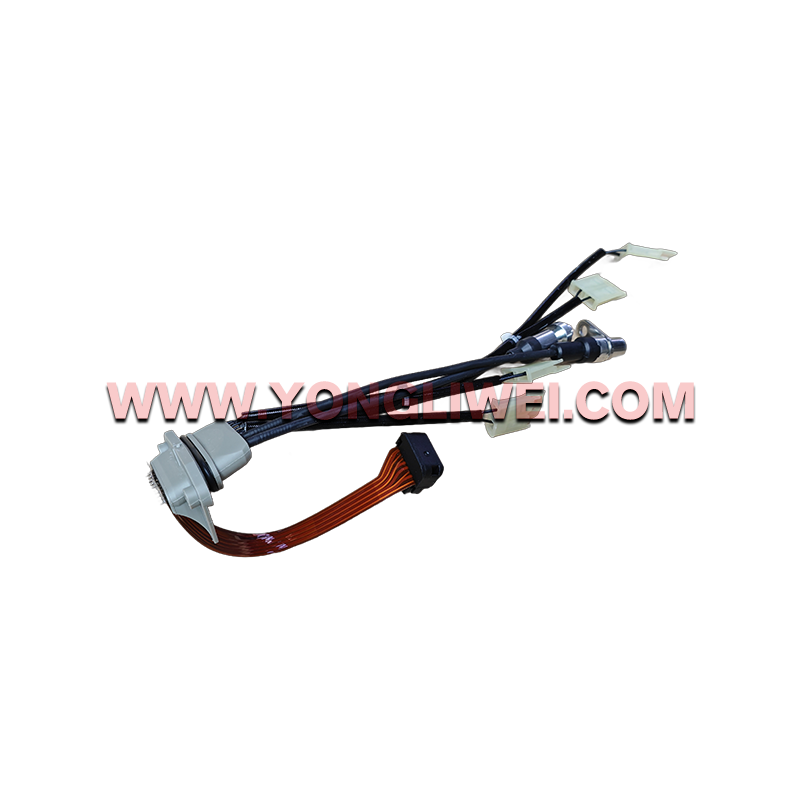

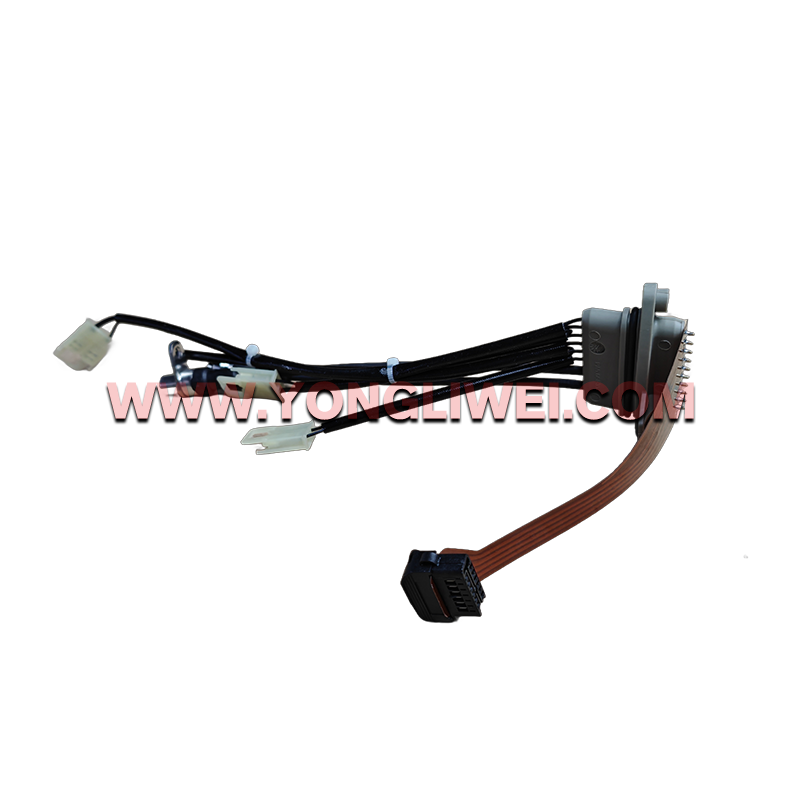

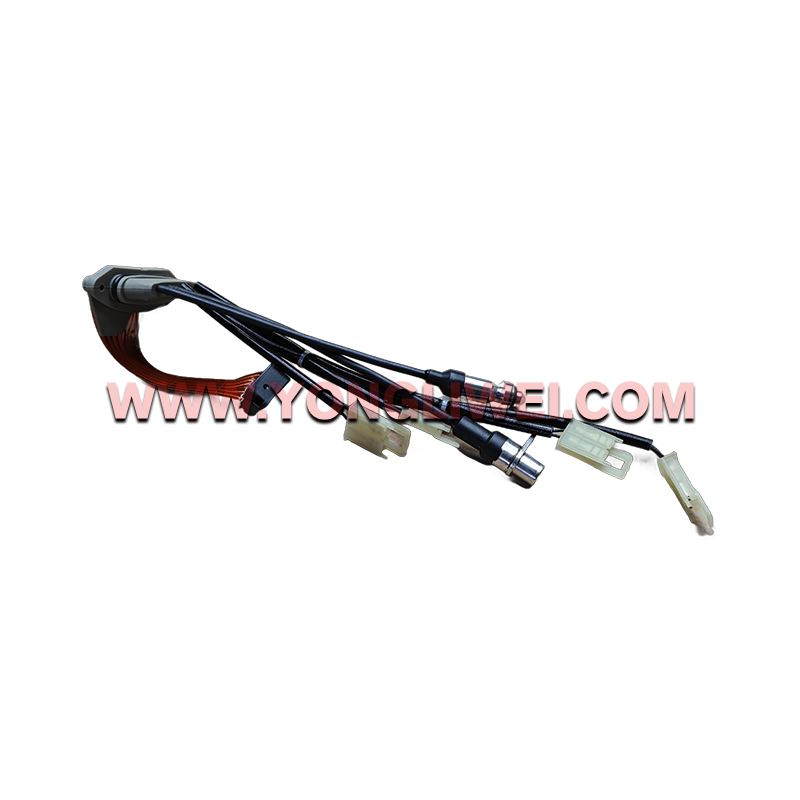

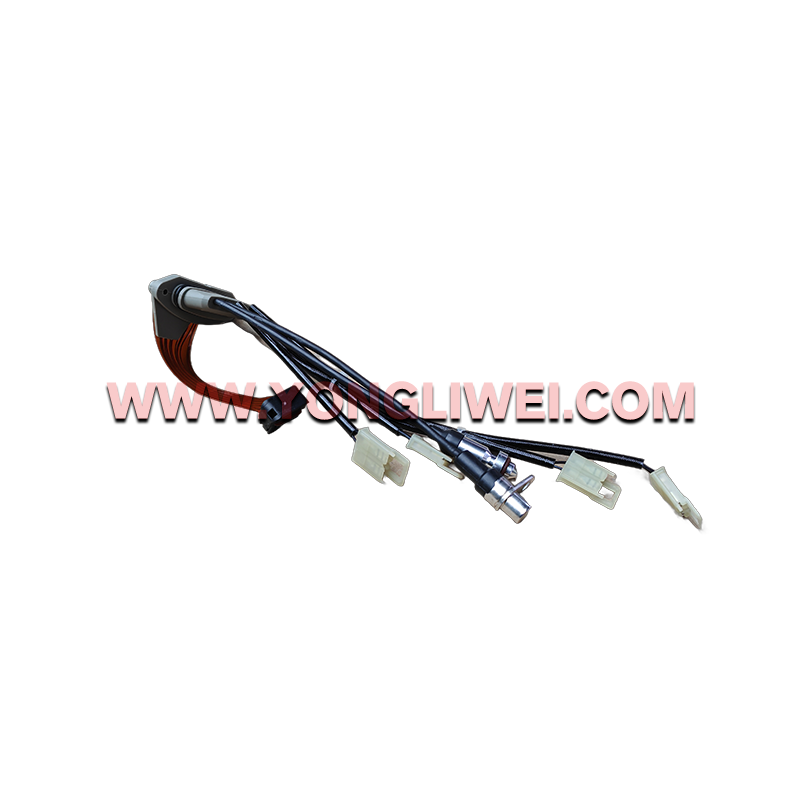

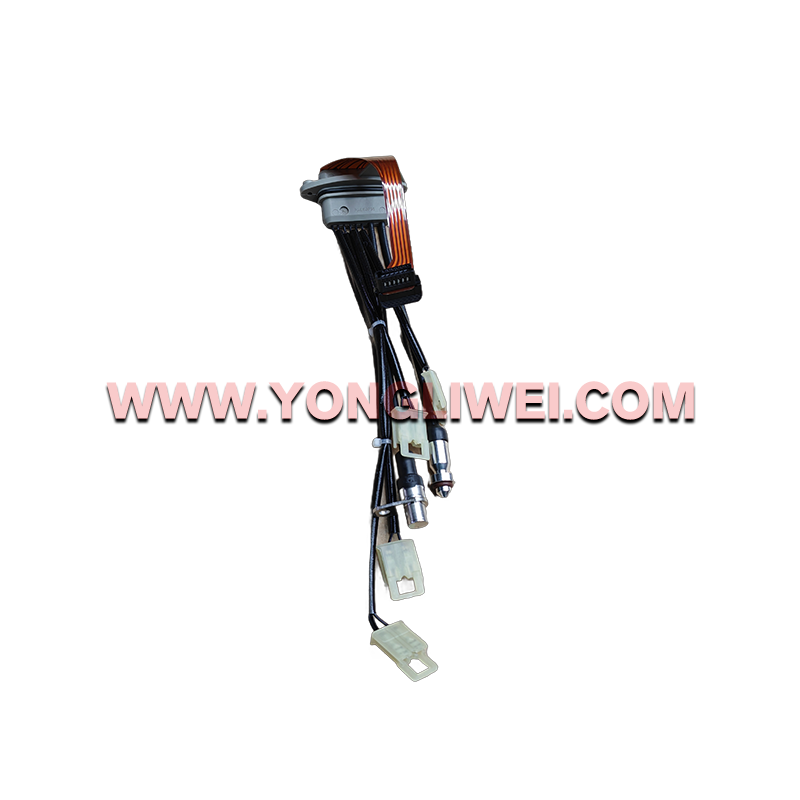

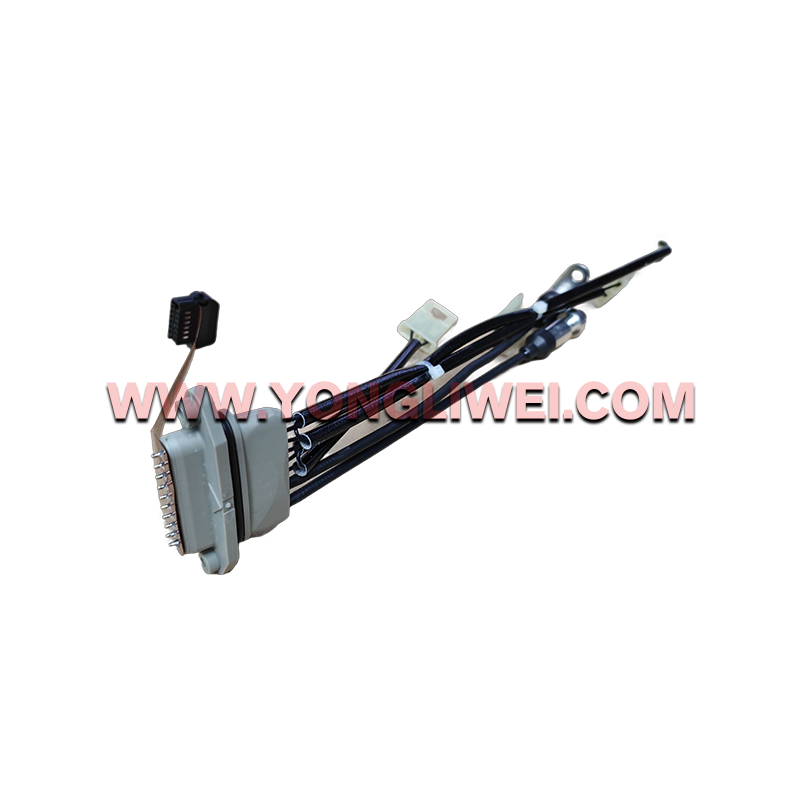

Zf12-speed automatic transmission 12AS controller harness 4213559292

4213559292 controller wiring harness is the internal top cover connecting cable exclusively for ZF Astronic 12AS 12-speed automated manual transmission. Integrated flat flexible ribbon cable, shift sensor plugs and solenoid valve terminals, responsible for signal transmission between TCU control unit, speed sensors and shift solenoids. Adopts high temperature resistant wire core and fully sealed waterproof connectors, stable signal output under high-temperature oil environment. Effectively solve gear hunting, intermittent shift failure, fault code alarms and limp mode problems for Volvo, Renault, Sinotruk Sitrak heavy trucks.
Availability:
Quantity:
  • 4213559292

  • ZF

  • 4213559292

Product parameters

Basic Info

OEM No: 4213559292
Cross Reference: 0501321146
Product Name: ZF12AS Astronic Transmission Controller Internal Wiring Harness
Brand: ZF
Series: Astronic 12AS 12-speed heavy-duty AMT gearbox
Applicable Models: ZF12AS series automated transmissions
Category: Transmission Electrical Parts – Gearbox Control Cable Harness



Weight Parameter

Net Weight: 0.85KG
Gross Weight: 1.3KG with export carton packing



Material & Feature

  1. High temperature resistant fluoroplastic wire, anti-aging and oil-proof, adapt to long-term gearbox high temperature working condition;

  2. Integrated flexible flat ribbon cable + multi-channel branch wires, layout consistent with original factory routing, easy installation without wire twisting;

  3. Original matching waterproof male/female connectors, dustproof and oil-proof, avoid poor contact and signal loss;

  4. Pre-installed gear position sensor, speed sensor and shift solenoid terminals, one-piece assembly without separate wiring;

  5. Strict OEM wire length, plug position and fixing clip layout, direct plug-and-play replacement without wire modification;

  6. Complete inspection for continuity, insulation and signal transmission before delivery, stable control signal output without intermittent failure.



Application

Compatible with ZF Astronic 12AS series 12-speed AMT transmissions; widely fitted on Volvo FH/FM, Renault T series, Sinotruk Sitrak C7H heavy tractors for long-distance logistics, mountain and plateau heavy haul transportation.



Origin & Lead Time

Shiyan warehouse in stock, deliver 1–2 working days after payment; bulk orders 3–7 working days, sea shipping 7–18 days.


MOQ & Packing

MOQ: 1 piece
Warranty: 3–6 months, man-made damage and incorrect installation excluded
Packing: Anti-rust plastic bag + bubble wrap + neutral export carton, moisture-proof for long ocean transportation
